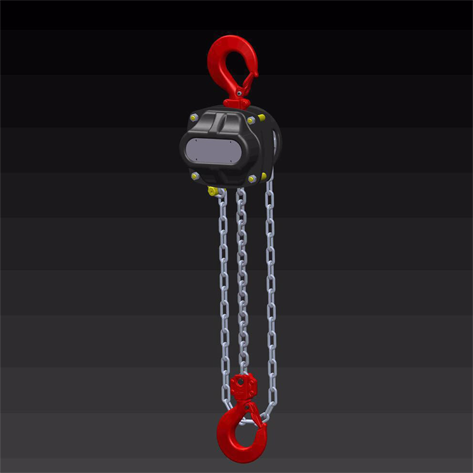

Toyo Manual Chain Hoist
Availability : In Stock
Characteristics :
• Capacity ranges from 0.5T to 50T.
• Automatic double pawl braking system.
• Double cover protection.
• Light weight robust construction.
• Low effort to lift maximum load.
• Extra thick asbestos free friction discs.
• Fully forged hooks are fitted with safety latches as standard.
• Galvanized Zinc plated hand chain as standard.
• Sealed bearing.
• The hoist is fitted with high grade 80 alloy load chain.
• Complies with EC Council Directive 2006/42/EC, ASME B30.
• Low effort to lift maximum load.
• Chain hoist Capacity range from 0.5ton to 50 ton
• Compact sized design product suitable for all application.
• Suspension and load hooks are made of alloy steel, 35CrMo treated heat and fitted with heavy duty safety latches, fitting groove and inspection points.
• Machined chain sprocket and gears provide smoother, more efficient operation
• Hook with safety latch securely can rotate freely 360 degrees.
• Ergonomic handle design so that the hoist is easy to operate.
• Gears are made up of 20CrMnTi material ,which ensures toughness and better strength.
• Fitted with High strength grade 80 alloy steel load chain with galvanized finish for corrosion resistance (comply with EN 818, safety factor 4)
*Load chain marked with T8 marks as per EN 818-7
• Heavy duty guide rollers for avoiding slippage of load chain.
• Rugged construction featuring steel gear case and hand wheel cover for hand chain operation.
• All hoists tested at 1.5 times of WLL.
