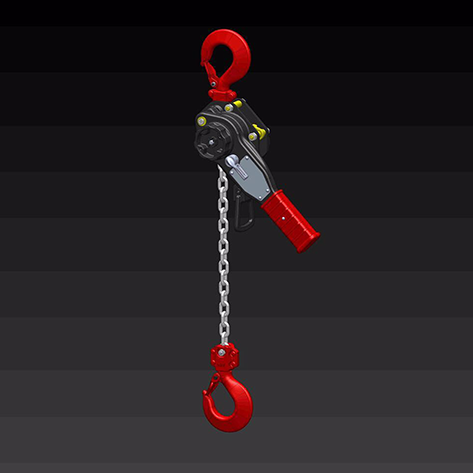

Toyo Manual Lever Hoist
Availability : In Stock
Characteristics :
• TOYOLIFT lever hoist is universal, manual hoist for tensioning and lashing in any direction.
• The ratchet lever hoist features compact design and robust, deep drawn, stamped steel construction.
• High quality materials ensure light weight without infringing reliability.
• Asbestos free brake, holding load at any desired height.
• Top & Bottom hooks are fitted with safety latches as standard.
• The load chain can be pulled freely and easily through the hoist in both directions to attach the load or to tension the chain.
• Short hand lever with rubber grip.
• Hand lever operates with little effort due to optimal gear ratio.
• Drop forged steel suspension & load hooks are heat treated.
• The hoist is fitted with high grade 80 alloy load chain.
• Complies with EC Council Directive 2006/42/EC, ASME B30.
• Lever hoist Capacity range from 0.75 ton to 9 ton.
• Ergonomic handle design so that the hoist is easy to operate, product suitable for all application.
• Suspension and load hooks are made of alloy steel 35CrMo,heat treated and fitted with heavy duty safety latches, fitting groove and inspection points.
• Machined chain sprocket and gears provide smoother, more efficient operation.
• Hook with safety latch securely can rotate freely 360 degrees.
• Gears are made up of 20CrMnTi, material which ensures toughness and better strength.
• Fitted with High strength grade 80 alloy steel load chain with galvanized finish for corrosion resistance.(comply with EN 818, safety factor 4)
• Load chain marked with T8 marks as per EN 818-7
• Heavy duty guide rollers for avoiding slippage of load chain.
• Nylon pull ring
• All hoists tested at 1.5 times of WLL.
