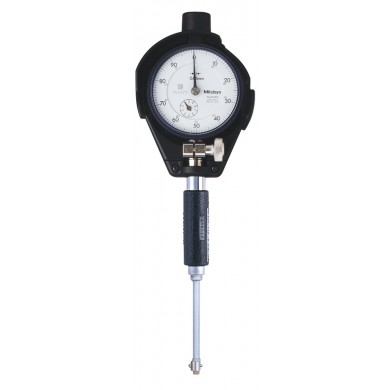

Mitutoyo Dial Bore Gauge 6-10mm

Part Number : 511 - 211
Availability : In Stock

A Mitutoyo dial bore gauge designed exclusively for small-hole ID measurement using interchangeable anvils. High-accuracy measurement is aided by a grip that reduces heat transfer from the operator’s hand.

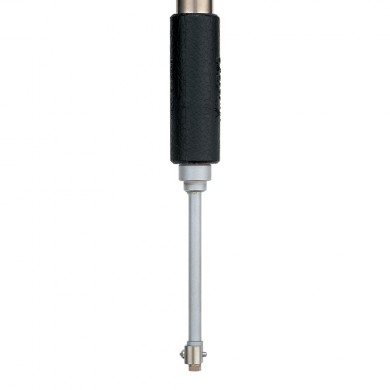

  • The interchangeable anvils used on this gauge are made of high-grade tool steel.
  • The dial indicator is fully protected by a rugged cover.

Specifications :

  • No. 511-211
  • Range : 6-10mm
  • Graduation : 0.01mm
  • Accuracy : ±5µm
  • Probe depth : 50mm
  • Repeatability : 2µm
  • Remarks : contains 511-209 (Bore Gauge) and 2922SB (Dial Indicator)
