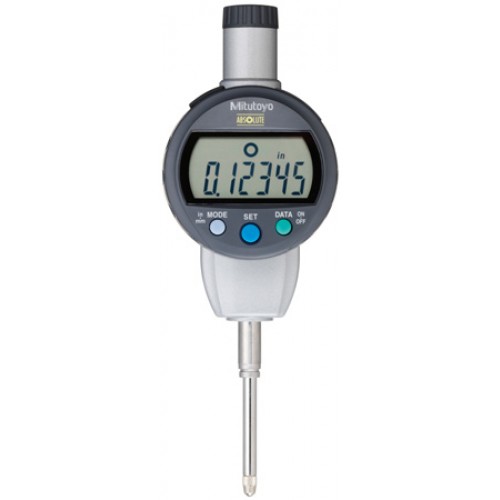

Mitutoyo ABSOLUTE Digimatic Indicator ID-C 25mm / 1"

Part Number : 543-471B
Availability : In Stock

Part Number : 543-471B

Similar to the Series 2 type dial indicator, this digital indicator includes the ABSOLUTE system scale for error free and high-speed measurements. Also has SPC data output.

  • As compact as standard Series 2 dial indicators.
  • Large, easy to read LCD.
  • SET key: Allows the display to be Zero-Set at any spindle position for comparison movements. This switch will also allow return to the absolute coordinate and display of the true position from the origin point.
  • GO/±NG judgement can be performed by setting upper and lower tolerance limits. The judgement result (GO/±NG) can be displayed in full size characters.
  • Simple calculation by a user-definable factor using the formula Ax ('x' is spindle displacement) can be performed.
  • The measuring direction can be reversed.
  • Unlimited response speed eliminates spindle over-speed errors.
  • The indicator face can be rotated 330° to an appropriate angle for easy reading.
